Metal brackets are the most common and traditional components used in fixed orthodontic appliances. They serve as the “anchor” points on each tooth, allowing the orthodontist to apply controlled pressure via an archwire to move teeth into their ideal positions.
Description

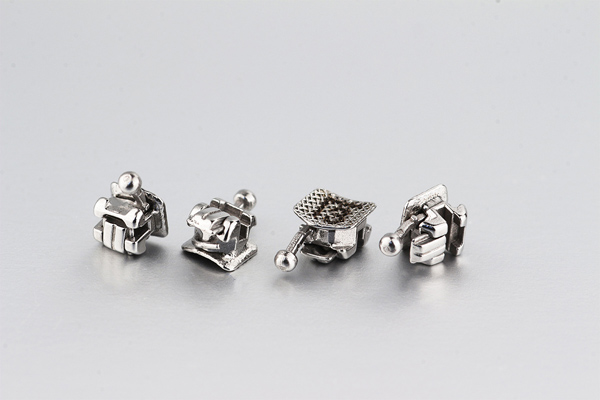

Metal brackets are small, precision-engineered attachments bonded to the labial (front) surface of the teeth. Most modern high-quality metal brackets are manufactured using Metal Injection Molding (MIM) technology. This process allows for the creation of complex, one-piece designs with rounded contours and highly accurate “slots” (the horizontal channel where the wire rests).
They are typically made from medical-grade stainless steel or cobalt-chromium alloys, ensuring they are biocompatible and resistant to the corrosive environment of the mouth.
Key Features
- Precision Slots: The internal dimensions of the bracket slot (typically $.018$ or $.022$ inches) are manufactured to extremely tight tolerances to ensure precise control over tooth movement.
- Low Profile: Modern designs are “low profile,” meaning they are thinner and protrude less from the tooth, significantly increasing patient comfort and reducing irritation to the lips and cheeks.
- Mechanical Retention: The base of the bracket usually features a micro-etched or laser-structured mesh base. This creates a strong mechanical bond with the dental adhesive, reducing the frequency of bracket “pop-offs.”
- Anatomical Contouring: The base is curved to match the specific anatomy of each individual tooth (e.g., a central incisor vs. a bicuspid), ensuring an accurate fit and proper torque expression.
- Identification Markers: Many brackets include color-coded dots or laser markings to help the clinician identify which tooth the bracket belongs to during the bonding process.
Usage and Clinical Workflow
The application of metal brackets follows a specific clinical sequence:
- Prophylaxis & Etching: The tooth surface is cleaned, and a mild acidic gel (etchant) is applied to create a microscopic roughness on the enamel.
- Bonding: A dental primer and adhesive resin are applied. The bracket is then positioned precisely on the “long axis” of the tooth.
- Light Curing: A high-intensity LED light is used to harden the adhesive, permanently securing the bracket.
- Ligation: Once all brackets are set, an archwire is placed into the slots. It is secured (ligated) using either elastic O-rings (available in various colors) or stainless steel ligature wires.
- Adjustment: Every 4–8 weeks, the clinician replaces the wires or adjust the ligatures to continue the tooth movement process.
Comparison: Traditional vs. Self-Ligating Metal Brackets
| Feature | Traditional Metal (MIM) | Self-Ligating Metal |
| Ligation Method | Requires elastic or steel ties | Built-in “clip” or “door” |
| Friction | Higher friction due to elastics | Lower friction (faster initial leveling) |
| Hygiene | Ties can trap plaque | Easier to clean |
| Chair Time | Longer (changing elastics) | Faster (opening/closing clips) |
