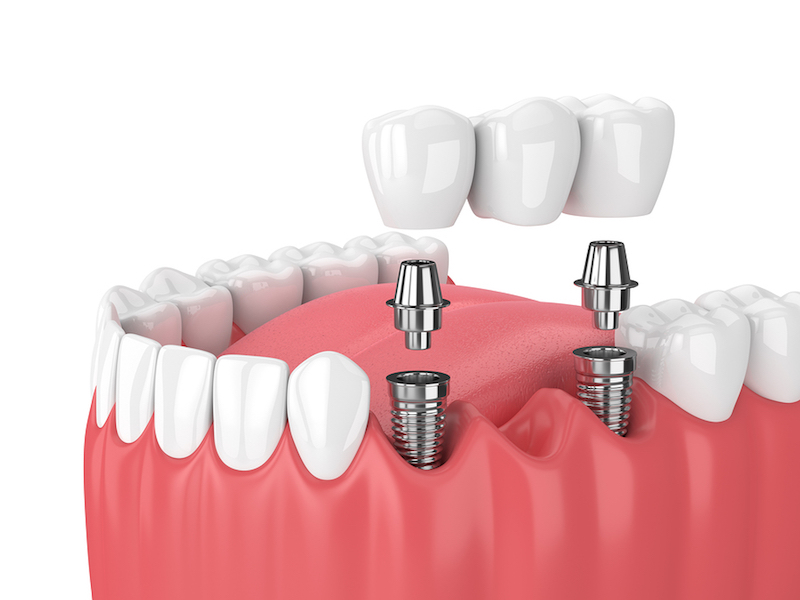

In dental implantology, an Abutment is a critical connection component that serves as the “bridge” between the dental implant (the screw-like fixture inside the bone) and the final prosthesis (the crown, bridge, or denture).
Description
An abutment is a connector piece that is screwed into the internal or external platform of a dental implant. Once the implant has integrated with the bone (osseointegration), the abutment is attached to extend through the gingival tissue (gums) into the oral cavity, providing the structural base for the restoration.
Main Types of Abutments
- Healing Abutments (Gingival Formers): Temporary components used immediately after surgery or after uncovering the implant to help shape the gum tissue during healing.
- Stock Abutments: Pre-manufactured by the implant company in standard sizes and shapes. They are cost-effective but offer less customization for gum contours.
- Custom Abutments: Fabricated specifically for a patient’s unique anatomy, usually via CAD/CAM technology. These provide the best aesthetic results and optimal support for the gums.
- Multi-Unit Abutments (MUA): Used for complex cases like “All-on-4” to correct the angle of tilted implants and allow for a screw-retained bridge.
Key Features
- Material Biocompatibility: Most are made from Grade 5 Titanium (for strength) or Zirconia (for aesthetics, as it eliminates the “dark line” at the gumly).
- Anti-Rotational Connection: Most abutments feature a geometric lock (e.g., internal hex, conical connection) to prevent the crown from rotating on the implant.
- Gingival Height: Available in various heights (1mm to 6mm+) to match the thickness of the patient’s soft tissue.
- Angulation: Available in straight or angled (typically 15° or 25°) versions to compensate for implants placed at a tilt.
Clinical Usage & Workflow
The use of an abutment generally follows these clinical steps:
| Step | Action |
| Exposure | The “healing cap” is removed once the implant is stable. |
| Selection | The dentist selects an abutment based on the tooth position, bite, and gum height. |
| Torquing | The abutment is tightened into the implant using a specialized torque wrench (usually between 20-35 Ncm) to ensure it doesn’t loosen. |
| Impression | An impression is taken either of the abutment itself or at the “fixture level” to create the final crown. |
| Finalization | The crown is either cemented onto the abutment or held in place by a screw passing through the crown into the abutment. |
Comparison: Titanium vs. Zirconia Abutments
| Feature | Titanium Abutment | Zirconia Abutment |
| Strength | Highest (Excellent for Molars) | High (but more brittle) |
| Aesthetics | Metal may show through thin gums | Superior (Natural tooth color) |
| Precision | Excellent | Excellent (via CAD/CAM) |
| Usage | Posterior (Back) teeth | Anterior (Front) teeth |
